Polishing Alumina Parts Thermal Stability Textile Ceramic Eyelet Grooved Yarn Guide
  • name
  • name
  • name
  • name
  • name
  • name

Polishing Alumina Parts Thermal Stability Textile Ceramic Eyelet Grooved Yarn Guide

MOQ: 2 piece
Price: Negotiation
Standard Packaging: Use the export carton which is secure against breakage on the MDF pallet.
Delivery Period: To be negotiated
Payment Method: L/C ，T/T
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
LJ Ceramic
Certification
ISO9001:2008/ROHS
Minimum Order Quantity:
2 piece
Price:
Negotiation
Packaging Details:
Use the export carton which is secure against breakage on the MDF pallet.
Delivery Time:
To be negotiated
Payment Terms:
L/C ，T/T
Highlight:

Polishing alumina parts

,

alumina parts Thermal Stability

,

Textile Ceramic Eyelet

Product Description

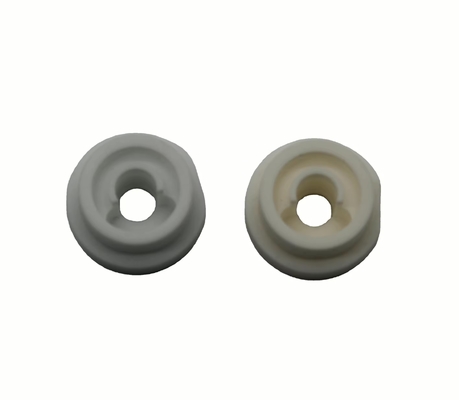

Polishing Textile Ceramic Eyelet / Grooved Yarn Guide



A textile ceramic eyelet is a small, circular component typically used in the textile industry. Made from advanced ceramic materials, these eyelets are designed to guide and control the movement of yarns or threads in textile machinery. The use of ceramics in these eyelets provides several benefits:

  1. High Wear Resistance: Ceramic materials are extremely durable and resistant to wear, which is crucial in textile applications where yarns or threads are continuously in motion and can cause significant wear on traditional metal or plastic components.

  2. Low Friction: Ceramic eyelets have a smooth surface that minimizes friction, reducing the risk of yarn breakage and allowing for smoother operation in textile processes.

  3. Thermal Stability: Ceramics can withstand high temperatures without deforming or degrading, making them ideal for use in environments where heat is generated by the fast movement of threads.

  4. Chemical Resistance: Ceramics are resistant to chemical corrosion, which is important in textile processes that may involve exposure to various chemicals or harsh environments.

  5. Longer Lifespan: Due to their durability and resistance to wear, ceramic eyelets typically have a longer service life than their metal or plastic counterparts, leading to reduced maintenance and replacement costs.



Ceramic Properties Table
  Name 99ceramic 95ceramic Zirconia
  Main Ingredients Al2O3>99% Al2O3>95% ZrO2≥94%
Physical properties Density 3.85 3.6 5.9
Water Absorption％ 0 0 0
Sintering temperature°C 1690 1670 1650
Material properties Hardness HV 1700 1600 1400
Flexural strength 4pt >3500 ＞2900 >11000
Compressive strength Kgf/㎡ 30000 25000 25000
Thermal properties Maximum operating temperature°C 1500 1400 1600
Coefficient of thermal expansion 8 7.8 10
10-6/°C
0-1000°C
Electrical Characteristics Thermal shock resistance T(°C) 200 220 350
Thermal conductivity W/m.k 31 22 3
Volume resistivity Ω.cm >10¹² >10¹² >10¹²
Dielectric breakdown strength KT/m 18 16 15
Dielectric constant 1MHZ(E) 9.2-10.5 9.0-10 12.5



Polishing Alumina Parts Thermal Stability Textile Ceramic Eyelet Grooved Yarn Guide 0Polishing Alumina Parts Thermal Stability Textile Ceramic Eyelet Grooved Yarn Guide 1Polishing Alumina Parts Thermal Stability Textile Ceramic Eyelet Grooved Yarn Guide 2Polishing Alumina Parts Thermal Stability Textile Ceramic Eyelet Grooved Yarn Guide 3

Welding Shear Stud Mullite Cordierite Ceramic Ferrule 4Welding Shear Stud Mullite Cordierite Ceramic Ferrule 5



FAQ

Q1: Are you a manufacturer or a trader?
A1: We are a real manufacturer, our factory is specialized in producing refractory materials for more than 20 years. We promise to provide the best price, the best pre-sale and after-sale service.



Q2: How do you control your quality?
A2: For each production process, LJ has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.



Q3: What is your delivery time?
A3: Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.



Q4: Do you provide free samples?
A4: Of course, we provide free samples.



Q5: Can we visit your company?
A5: Yes, of course, you are welcome to visit LJ company and our products.



Q6: What is the MOQ for trial order?
A6: There is no limit, we can provide the best suggestion and solution according to your situation.



Q7: Why choose us?
A7: We have been making refractory materials for more than 20 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
