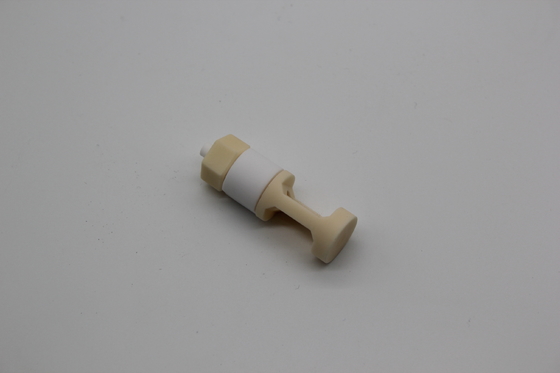

Customized Alumina Ceramic Parts Precision Al2O3 Ceramic Structural Components
  • name
  • name
  • name
  • name

Customized Alumina Ceramic Parts Precision Al2O3 Ceramic Structural Components

MOQ: 2 piece
Price: Negotiation
Standard Packaging: Use the export carton which is secure against breakage on the MDF pallet.
Delivery Period: To be negotiated
Payment Method: L/C ，T/T
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
LJ Ceramic
Certification
ISO9001:2008/ROHS
Minimum Order Quantity:
2 piece
Price:
Negotiation
Packaging Details:
Use the export carton which is secure against breakage on the MDF pallet.
Delivery Time:
To be negotiated
Payment Terms:
L/C ，T/T
Highlight:

Customized alumina ceramic parts

,

alumina ceramic parts Precision

,

Al2O3 Ceramic Structural Components

Product Description



Customized High Temperature Resistance Precision Advanced Ceramic Structural Components



Advanced ceramic assemblies refer to components made from high-performance ceramic materials, typically used in industrial applications requiring high temperature resistance, corrosion resistance, wear resistance, and insulation properties. These ceramic materials can include alumina (Al2O3), silicon nitride (Si3N4), silicon carbide (SiC), and others.

Advanced ceramic assemblies maintain their physical and chemical stability under various conditions, making them widely applicable in fields such as aerospace, energy, electronics, and semiconductor manufacturing. These assemblies might include ceramic bearings, turbine blades, electronic packaging housings, substrates, and tools used in semiconductor processing.

These materials are often produced through precision machining, sintering, and other manufacturing techniques, ensuring they possess high strength, hardness, and durability, along with excellent insulation and corrosion resistance, making them suitable for demanding work environments.



Material Data



Ceramic Properties Table
  Name 99ceramic 95ceramic Zirconia
  Main Ingredients Al2O3>99% Al2O3>95% ZrO2≥94%
Physical properties Density 3.85 3.6 5.9
Water Absorption％ 0 0 0
Sintering temperature°C 1690 1670 1650
Material properties Hardness HV 1700 1600 1400
Flexural strength 4pt >3500 ＞2900 >11000
Compressive strength Kgf/㎡ 30000 25000 25000
Thermal properties Maximum operating temperature°C 1500 1400 1600
Coefficient of thermal expansion 8 7.8 10
10-6/°C
0-1000°C
Electrical Characteristics Thermal shock resistance T(°C) 200 220 350
Thermal conductivity W/m.k 31 22 3
Volume resistivity Ω.cm >10¹² >10¹² >10¹²
Dielectric breakdown strength KT/m 18 16 15
Dielectric constant 1MHZ(E) 9.2-10.5 9.0-10 12.5





Customized Alumina Ceramic Parts Precision Al2O3 Ceramic Structural Components 0Customized Alumina Ceramic Parts Precision Al2O3 Ceramic Structural Components 1Customized Alumina Ceramic Parts Precision Al2O3 Ceramic Structural Components 2Customized Alumina Ceramic Parts Precision Al2O3 Ceramic Structural Components 3

Welding Shear Stud Mullite Cordierite Ceramic Ferrule 4Welding Shear Stud Mullite Cordierite Ceramic Ferrule 5



FAQ

Q1: Are you a manufacturer or a trader?
A1: We are a real manufacturer, our factory is specialized in producing refractory materials for more than 20 years. We promise to provide the best price, the best pre-sale and after-sale service.



Q2: How do you control your quality?
A2: For each production process, LJ has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.



Q3: What is your delivery time?
A3: Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.



Q4: Do you provide free samples?
A4: Of course, we provide free samples.



Q5: Can we visit your company?
A5: Yes, of course, you are welcome to visit LJ company and our products.



Q6: What is the MOQ for trial order?
A6: There is no limit, we can provide the best suggestion and solution according to your situation.



Q7: Why choose us?
A7: We have been making refractory materials for more than 20 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
