High Precision Advanced Ceramics Electrical Insulation Alumina Ceram Sheet Thin Ceramic Parts
  • name
  • name
  • name
  • name

High Precision Advanced Ceramics Electrical Insulation Alumina Ceram Sheet Thin Ceramic Parts

MOQ: 2 piece
Price: Negotiation
Standard Packaging: Use the export carton which is secure against breakage on the MDF pallet.
Delivery Period: To be negotiated
Payment Method: L/C ，T/T
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
LJ Ceramic
Certification
ISO9001:2008/ROHS
Minimum Order Quantity:
2 piece
Price:
Negotiation
Packaging Details:
Use the export carton which is secure against breakage on the MDF pallet.
Delivery Time:
To be negotiated
Payment Terms:
L/C ，T/T
Highlight:

High Precision Advanced Ceramics

,

Advanced Ceramics Electrical Insulation

,

Alumina Ceram Sheet Thin

Product Description

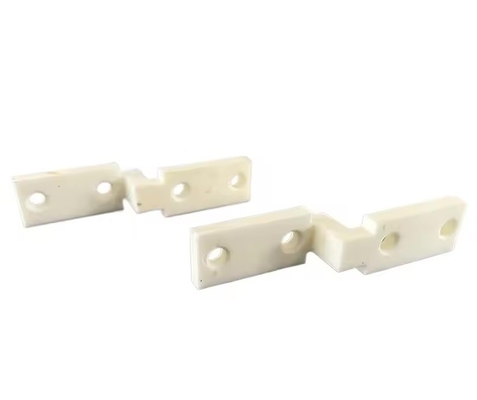

High Precision Alumina Ceram Sheet Thin Ceramic Parts


Alumina ceramic components offer a range of advantages

  1. High Hardness and Wear Resistance: Alumina ceramics have a hardness close to that of diamond, providing excellent wear resistance, making them suitable for high-wear environments.

  2. High-Temperature Stability: Alumina ceramics exhibit outstanding performance at high temperatures, maintaining structural stability and mechanical strength, making them ideal for applications in high-temperature environments.

  3. Chemical Stability: Alumina ceramics possess excellent chemical stability, resisting acids, alkalis, and other chemical corrosion, making them suitable for use in corrosive environments.

  4. Electrical Insulation: Alumina ceramics are excellent electrical insulators, widely used in electrical and electronic devices for manufacturing insulators and other insulating components.

  5. Low Thermal Expansion Coefficient: Alumina ceramics have a low thermal expansion coefficient, which helps maintain dimensional stability under extreme temperature changes.

  6. Good Thermal Conductivity: Although alumina ceramics have lower thermal conductivity compared to metals, they still offer relatively good thermal conductivity compared to other ceramic materials, suitable for applications requiring some degree of heat dissipation.

  7. Biocompatibility: Alumina ceramics are biocompatible, making them commonly used in medical devices and implants.

Material Data

Item
Unit Symbol
95% Alumina Ceramics
99% Alumina Ceramics
99.7% Alumina Ceramics
Maximum Using Temperature
℃
1600
1700
1700
Water Absorption
%
0
0
0
Hardness
Gpa
≥85
≥89
≥89
Flexural Strength
MPa (psi x 103)
336
550
550
Compressive Strength
MPa (psi x 103)
2000
2500
2500
Fracture Toughness
Mpa
4~5
5.6
6
Thermal Conductivity
W/m °K
18-25
30
30.4
Thermal Shock Resistance
°C
220
180-220
180-220
Dielectricity Constant

9.4
9.8
9.8



High Precision Advanced Ceramics Electrical Insulation Alumina Ceram Sheet Thin Ceramic Parts 0High Precision Advanced Ceramics Electrical Insulation Alumina Ceram Sheet Thin Ceramic Parts 1High Precision Advanced Ceramics Electrical Insulation Alumina Ceram Sheet Thin Ceramic Parts 2

Welding Shear Stud Mullite Cordierite Ceramic Ferrule 4Welding Shear Stud Mullite Cordierite Ceramic Ferrule 5



FAQ
Q1: Are you a manufacturer or a trader?
A1: We are a real manufacturer, our factory is specialized in producing refractory materials for more than 20 years. We promise to provide the best price, the best pre-sale and after-sale service.



Q2: How do you control your quality?
A2: For each production process, LJ has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.



Q3: What is your delivery time?
A3: Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.



Q4: Do you provide free samples?
A4: Of course, we provide free samples.



Q5: Can we visit your company?
A5: Yes, of course, you are welcome to visit LJ company and our products.



Q6: What is the MOQ for trial order?
A6: There is no limit, we can provide the best suggestion and solution according to your situation.



Q7: Why choose us?
A7: We have been making refractory materials for more than 20 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
