Customized Advanced Ceramics Corrosion Resistant Anti Magnetic Precision Ceramic Parts

Products

Customized Advanced Ceramics Corrosion Resistant Anti Magnetic Precision Ceramic Parts

MOQ:	2 piece
Price:	Negotiation
Standard Packaging:	Use the export carton which is secure against breakage on the MDF pallet.
Delivery Period:	To be negotiated
Payment Method:	L/C ，T/T

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

LJ Ceramic

Certification

ISO9001:2008/ROHS

Minimum Order Quantity:

2 piece

Price:

Negotiation

Packaging Details:

Use the export carton which is secure against breakage on the MDF pallet.

Delivery Time:

To be negotiated

Payment Terms:

L/C ，T/T

Highlight:

Customized Advanced Ceramics

Advanced Ceramics Corrosion resistant

Anti Magnetic Precision Ceramic Parts

Product Description

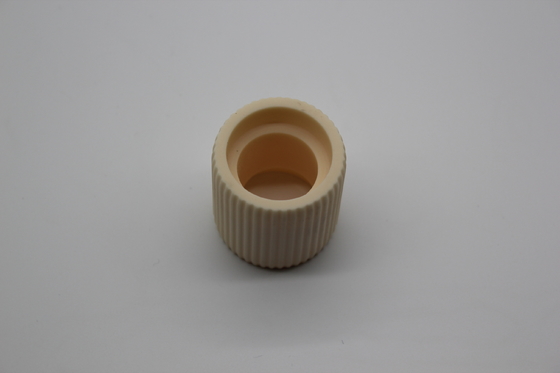

Customized Insulation, High Temperature, Corrosion And Anti-Magnetic Precision Ceramic Parts

Advanced ceramic custom parts refer to components made from high-performance ceramic materials tailored to meet specific requirements for various applications. These custom parts are engineered to provide precise dimensions, shapes, and properties to suit unique industrial needs, including high-temperature environments, chemical resistance, and mechanical strength.

Advanced ceramic custom parts are commonly used in industries such as aerospace, electronics, medical devices, automotive, and energy. Examples of these custom parts include:

Wear-resistant components: Custom parts designed to withstand extreme wear and friction in industrial machinery.
Thermal insulators: Components designed to maintain structural integrity at high temperatures.
Electrical insulators: Custom parts used in electronic devices for their excellent insulating properties.
Biomedical implants: Custom-made ceramic parts used in medical applications due to their biocompatibility and durability.

Manufacturing advanced ceramic custom parts involves precision machining, sintering, and other specialized techniques to ensure that the final product meets the exact specifications required for its intended use.

Material Data

Parameter	Alumina (Al2O3)	Silicon Nitride (Si3N4)	Silicon Carbide (SiC)
Density (g/cm³)	3.95	3.2	3.21
Melting Point (°C)	2050	1900	2700
Thermal Conductivity (W/m·K)	25-35	20-30	120-200
Thermal Expansion Coefficient (×10⁻⁶/K)	8.0-8.5	2.8-3.3	4.0-4.5
Hardness (Mohs)	9	9.5	9.5
Elastic Modulus (GPa)	370-400	300-320	370-410
Flexural Strength (MPa)	300-500	600-1000	400-600
Electrical Conductivity (S/m)	10⁻¹⁰	10⁻¹⁵	10⁻¹⁵
Chemical Stability	Resistant to acids, bases, oxidation	Resistant to acids, bases, oxidation	Highly resistant to acids, bases, oxidation

Welding Shear Stud Mullite Cordierite Ceramic Ferrule 4

FAQ

Q1: Are you a manufacturer or a trader?
A1: We are a real manufacturer, our factory is specialized in producing refractory materials for more than 20 years. We promise to provide the best price, the best pre-sale and after-sale service.

Q2: How do you control your quality?
A2: For each production process, LJ has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.

Q3: What is your delivery time?
A3: Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.

Q4: Do you provide free samples?
A4: Of course, we provide free samples.

Q5: Can we visit your company?
A5: Yes, of course, you are welcome to visit LJ company and our products.

Q6: What is the MOQ for trial order?
A6: There is no limit, we can provide the best suggestion and solution according to your situation.

Q7: Why choose us?
A7: We have been making refractory materials for more than 20 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
