Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld

Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld

MOQ: 2 piece
Price: Negotiation
Standard Packaging: Use the export carton which is secure against breakage on the MDF pallet.
Delivery Period: To be negotiated
Payment Method: L/C ,T/T
Detail Information
Place of Origin
Jiangsu, China
Brand Name
LJ Ceramic
Certification
ISO9001:2008/ROHS
Minimum Order Quantity:
2 piece
Price:
Negotiation
Packaging Details:
Use the export carton which is secure against breakage on the MDF pallet.
Delivery Time:
To be negotiated
Payment Terms:
L/C ,T/T
Highlight:

Waterproof ceramic backing strip

,

One Side Welding ceramic backing strip

,

GMAW ceramic weld

Product Description

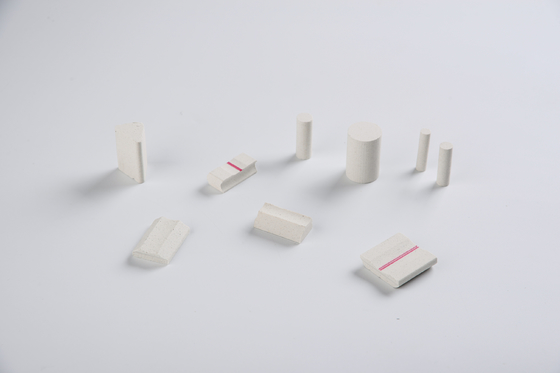

Waterproof One Side Welding Ceramic Backing Strips And Tapes



Product Description


Waterproof Ceramic Backing Strips For One Side Welding have a very smooth finish, good water-proof property,
and makes one side welding both sides beads shaped in fine quality. The improvement of working efficiency and
cost-saving are gotten by omitting the backside gouging and root passes.
Suitable for Gas Metal Arc Welding (GMAW) and Submerged Arc Welding (SAW) of V-shape, X-shape, T-shape
joints of metal structures in shipyards, off-shore buildings, heavy industries etc.


Features& Advantages

  • Very smooth finish;
  •  Good water-proof property;
  •  Improvement of working efficiency;
  •  Cost-saving;
  • Omitting backside gouging and root passes.
  • Thick aluminum adhesive backing contains no halogen and no chemical reactions occur during the process
  • Excellent resistance to temperature surges
  • Ceramic materials have the fine property of acid and alkali receptivity
  • A wide range of sizes and types of ceramic tiles are available and customizable to customers' needs
  • Makes one side welding both sides beads shaped in fine quality;



Ceramic material performance index

Alumina Ceramic
Zirconia Ceramic
Performance
Unit
≧95 ≧99 ≧99.5
Bulk density g /cm3 3.7 3.85 3.85 6
Hardness HRA ≥ 86 88 88 92
Flexure strength Mpa≧ 300 350 400 1100
The max.temperature 1500 1500 1500 1450
Linear expansion coefficient ×10-6/℃ 7.5 8.2 8.2 10.2
Dielectric constant εr20℃, 1MHz 9 9.2 9.2 28
Dielectric loss tanδ×10-4, 1MHz 3 2 2 10
Volume resistivity Ω·cm 20℃
10^13
10^14 10^14 10^14
Disruptive strength KV/mm , DC≥ 20 20 20 20
Acid resistance mg/cm2 ≤
0.7
0.7 0.7 2
Alkali resistance mg/cm2 ≤ 0.2 0.1 0.1 0.08
Abrasive resistance g/cm2 ≤ 0.2 0.1 0.1 0.05
Compressive strength MPa ≥ 2500 2500 2500 3000
Rupture strength MPa ≥ 200 350 350 600
Elasticity modulus GPa 300 350 350 210
Poisson ratio   0.2 0.22 0.22 0.23
Heat conductivity W/m·K( 20℃) 20 25 25 2.6



Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 0
Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 1
Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 2
Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 3
Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 4
Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 5
Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 6
Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 7



Product List
Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 8

Production Workshop

Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 9Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 10Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 11Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 12

Applications

Widely applied in Shipbuilding, Bridge Building, Tank & Tube Welding

Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 13
Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 14
Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 15
Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 16



Packing and shipping



Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 17Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 18Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 19Waterproof One Side Welding Ceramic Backing Strips And Tapes GMAW Ceramic Weld 20



FAQ

Q1: Are you a manufacturer or a trader?
A1: We are a real manufacturer, our factory is specialized in producing refractory materials for more than 20 years. We promise to provide the best price, the best pre-sale and after-sale service.



Q2: How do you control your quality?
A2: For each production process, LJ has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.



Q3: What is your delivery time?
A3: Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.



Q4: Do you provide free samples?
A4: Of course, we provide free samples.



Q5: Can we visit your company?
A5: Yes, of course, you are welcome to visit LJ company and our products.



Q6: What is the MOQ for trial order?
A6: There is no limit, we can provide the best suggestion and solution according to your situation.



Q7: Why choose us?
A7: We have been making refractory materials for more than 20 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
