ISO9001 Ceramic Welding Tape Backing Ceramic Backing Tape High Temperature Resistance

Products

ISO9001 Ceramic Welding Tape Backing Ceramic Backing Tape High Temperature Resistance

MOQ:	2 piece
Price:	Negotiation
Standard Packaging:	Use the export carton which is secure against breakage on the MDF pallet.
Delivery Period:	To be negotiated
Payment Method:	L/C ，T/T

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

LJ Ceramic

Certification

ISO9001:2008/ROHS

Minimum Order Quantity:

2 piece

Price:

Negotiation

Packaging Details:

Use the export carton which is secure against breakage on the MDF pallet.

Delivery Time:

To be negotiated

Payment Terms:

L/C ，T/T

Highlight:

ISO9001 ceramic welding tape

ceramic welding tape temperature resistance

Ceramic Backing Tape temperature resistance

Product Description

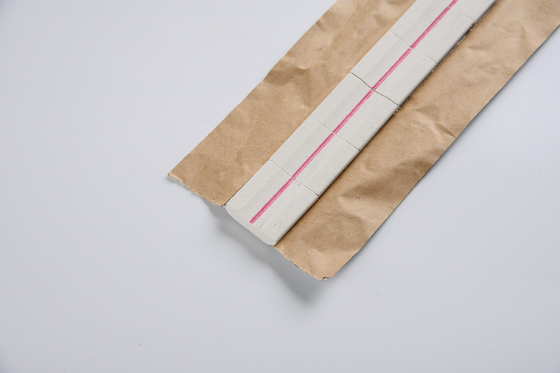

Ceramic Welding Backing Tape Welding Ceramic Backing Tape

Welding Ceramic Backing is suitable for Gas Metal Arc Welding (MIG), Gas Tungsten Arc Weld (TIG) and Sub-merged Arc Welding (SAW) of V-shape, X-shape, T-shape joints of metal structures in shipyard, off-shore building, heavy industries etc.

Welding back up tapes & strips for one side welding.

It will produce a smooth homogenous weld by supporting the puddle and forming consistent back beads during plane welding. Welds should be free from porosity and inclusions. Ceramic tape eliminates back gouging and root passes.

The improvement of working efficiency and cost saving are gotten by omitting the backside gouging and root passes.

Features:

1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all electric products, electric heating products and wear resistant machinery parts.

Type	Ceramic on self-adhesive aluminium strip
Part no.	LX-A2
Length	600 mm (division:24*25 mm)
Fastening	On self-adhesive aluminium strip
Colour	Grey

Application	Straight and curved butt joints min . radius of curvature: 200 mm
Packaging	Quantity per box: 60 pieces Quantity per pallet: 4,800pieces Weight per box :14kg

Ceramic material performance index
		Alumina Ceramic			Zirconia Ceramic
Performance	Unit	≧95	≧99	≧99.5
Bulk density	g /cm3	3.7	3.85	3.85	6
Hardness	HRA ≥	86	88	88	92
Flexure strength	Mpa≧	300	350	400	1100
The max.temperature	℃	1500	1500	1500	1450
Linear expansion coefficient	×10-6/℃	7.5	8.2	8.2	10.2
Dielectric constant	εr20℃, 1MHz	9	9.2	9.2	28
Dielectric loss	tanδ×10-4, 1MHz	3	2	2	10
Volume resistivity	Ω·cm 20℃	10^13	10^14	10^14	10^14
Disruptive strength	KV/mm , DC≥	20	20	20	20
Acid resistance	mg/cm2 ≤	0.7	0.7	0.7	2
Alkali resistance	mg/cm2 ≤	0.2	0.1	0.1	0.08
Abrasive resistance	g/cm2 ≤	0.2	0.1	0.1	0.05
Compressive strength	MPa ≥	2500	2500	2500	3000
Rupture strength	MPa ≥	200	350	350	600
Elasticity modulus	GPa	300	350	350	210
Poisson ratio		0.2	0.22	0.22	0.23
Heat conductivity	W/m·K( 20℃)	20	25	25	2.6

ISO9001 Ceramic Welding Tape Backing Ceramic Backing Tape High Temperature Resistance 1

Product List

Production Workshop

Applications

Widely applied in Shipbuilding, Bridge Building, Tank & Tube Welding

Packing and shipping

ISO9001 Ceramic Welding Tape Backing Ceramic Backing Tape High Temperature Resistance 11 Welding Shear Stud Mullite Cordierite Ceramic Ferrule 4

FAQ

Q1: Are you a manufacturer or a trader?
A1: We are a real manufacturer, our factory is specialized in producing refractory materials for more than 20 years. We promise to provide the best price, the best pre-sale and after-sale service.

Q2: How do you control your quality?
A2: For each production process, LJ has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.

Q3: What is your delivery time?
A3: Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.

Q4: Do you provide free samples?
A4: Of course, we provide free samples.

Q5: Can we visit your company?
A5: Yes, of course, you are welcome to visit LJ company and our products.

Q6: What is the MOQ for trial order?
A6: There is no limit, we can provide the best suggestion and solution according to your situation.

Q7: Why choose us?
A7: We have been making refractory materials for more than 20 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
