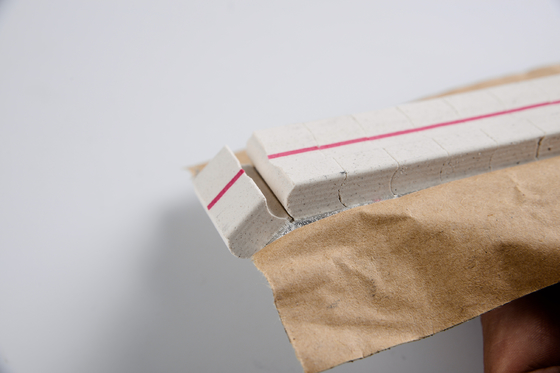

Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips

Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips

MOQ: 2 piece
Price: Negotiation
Standard Packaging: Use the export carton which is secure against breakage on the MDF pallet.
Delivery Period: To be negotiated
Payment Method: L/C ,T/T
Detail Information
Place of Origin
Jiangsu, China
Brand Name
LJ Ceramic
Certification
ISO9001:2008/ROHS
Minimum Order Quantity:
2 piece
Price:
Negotiation
Packaging Details:
Use the export carton which is secure against breakage on the MDF pallet.
Delivery Time:
To be negotiated
Payment Terms:
L/C ,T/T
Highlight:

Aluminium Tape ceramic welding tape

,

1MHz ceramic welding tape

,

1MHz ceramic weld backing strips

Product Description

Welding Backing On Aluminium Tap Ceramic Backing Material

Using a welding ceramic backing can significantly simplify the welding process and reduce backside grinding and trimming time. This not only improves production efficiency, but also improves welding quality. In traditional welding processes, the forming quality of the weld root often requires a large amount of subsequent grinding and trimming work to ensure. The application of welding ceramic backing can directly form high-quality weld roots during the welding process, reducing subsequent processing workload. In addition, welding ceramic backing can help improve welding success and consistency, reducing scrap and rework. In some welding applications that require high precision and high requirements, such as pipe welding, pressure vessel manufacturing and shipbuilding industries, the application of welding ceramic backing is particularly important. It not only improves welding efficiency, but also significantly improves the overall quality and reliability of the weld. For welding operators, the use of welding ceramic backing is also more convenient and safer, and does not require complex operations and adjustments in high temperature environments.



Ceramic material performance index

Alumina Ceramic
Zirconia Ceramic
Performance
Unit
≧95 ≧99 ≧99.5
Bulk density g /cm3 3.7 3.85 3.85 6
Hardness HRA ≥ 86 88 88 92
Flexure strength Mpa≧ 300 350 400 1100
The max.temperature 1500 1500 1500 1450
Linear expansion coefficient ×10-6/℃ 7.5 8.2 8.2 10.2
Dielectric constant εr20℃, 1MHz 9 9.2 9.2 28
Dielectric loss tanδ×10-4, 1MHz 3 2 2 10
Volume resistivity Ω·cm 20℃
10^13
10^14 10^14 10^14
Disruptive strength KV/mm , DC≥ 20 20 20 20
Acid resistance mg/cm2 ≤
0.7
0.7 0.7 2
Alkali resistance mg/cm2 ≤ 0.2 0.1 0.1 0.08
Abrasive resistance g/cm2 ≤ 0.2 0.1 0.1 0.05
Compressive strength MPa ≥ 2500 2500 2500 3000
Rupture strength MPa ≥ 200 350 350 600
Elasticity modulus GPa 300 350 350 210
Poisson ratio   0.2 0.22 0.22 0.23
Heat conductivity W/m·K( 20℃) 20 25 25 2.6



Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips 0
Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips 1
Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips 2
Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips 3
Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips 4
Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips 5
Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips 6
Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips 7



Product List
Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips 8

Production Workshop

Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips 9Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips 10Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips 11Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips 12

Applications

Widely applied in Shipbuilding, Bridge Building, Tank & Tube Welding

Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips 13
Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips 14
Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips 15
Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips 16



Packing and shipping



Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips 17Aluminium Tape Ceramic Welding Tape Ceramic Weld Backing Strips 18Welding Shear Stud Mullite Cordierite Ceramic Ferrule 4Welding Shear Stud Mullite Cordierite Ceramic Ferrule 5



FAQ

Q1: Are you a manufacturer or a trader?
A1: We are a real manufacturer, our factory is specialized in producing refractory materials for more than 20 years. We promise to provide the best price, the best pre-sale and after-sale service.



Q2: How do you control your quality?
A2: For each production process, LJ has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.



Q3: What is your delivery time?
A3: Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.



Q4: Do you provide free samples?
A4: Of course, we provide free samples.



Q5: Can we visit your company?
A5: Yes, of course, you are welcome to visit LJ company and our products.



Q6: What is the MOQ for trial order?
A6: There is no limit, we can provide the best suggestion and solution according to your situation.



Q7: Why choose us?
A7: We have been making refractory materials for more than 20 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
