Industrial Ceramics Alumina Stud Welding Ceramic Ferrule Ceramic Protective Welding Ring

Products

Industrial Ceramics Alumina Stud Welding Ceramic Ferrule Ceramic Protective Welding Ring

MOQ:	2 piece
Price:	Negotiation
Standard Packaging:	Use the export carton which is secure against breakage on the MDF pallet.
Delivery Period:	To be negotiated
Payment Method:	L/C ，T/T

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

LJ Ceramic

Certification

ISO9001:2008/ROHS

Minimum Order Quantity:

2 piece

Price:

Negotiation

Packaging Details:

Use the export carton which is secure against breakage on the MDF pallet.

Delivery Time:

To be negotiated

Payment Terms:

L/C ，T/T

Highlight:

Industrial stud welding ceramic ferrule

Ceramics Alumina stud welding ceramic ferrule

Protective Welding Ring

Product Description

Industrial Ceramics Alumina Ceramic Welding Ring Welding Stud Protective Ring

Applications:

Stud Welding: Particularly in construction, shipbuilding, and manufacturing, where strong, reliable welds are required.
Shear Connectors: Used in composite construction to connect steel beams and concrete slabs.
Refractory Anchors: Used to attach refractory materials to industrial furnaces or other high-temperature environments.

Installation and Usage:

Setup: The ceramic ferrule is placed over the weld area, surrounding the stud.
Welding: When the welding process begins, the ferrule helps shape the molten metal and protects the weld pool.
Post-Weld: After welding, the ferrule is usually broken off and removed, revealing the completed weld.

Benefits:

Improved Weld Quality: Reduced contamination and spatter result in cleaner and stronger welds.
Consistency: Helps achieve uniform welds, essential for structural integrity.
Ease of Use: Simplifies the welding process, especially for less experienced welders.

Style

M series
RF series
UF series
PF series
Customized

Product Paramenters

Characteristics		Alumina
Components		99%Al2O3	95%Al2O3
Density	g/cm3	3.8	3.65
Water Absorption	%	0	0
Sintering temperature	℃	1700	1680
Hardness	HV	1700	1500
Flexural strength	Kgf/cm2	3500	3000
Compressive Strength	Kgf/cm2	30000	25000
Fracture toughness	Map.m3/2	4	3~4
Maximum service temperature	℃	1700	1600
Coefficient of thermal expansion 0-1000℃	*10-6/℃	8.5	8
Heat resistance	T(℃)	200	220
Heat resistance	W/m.k(25℃-300℃)	31.4~15.9	25~14
Volume resistivity	20℃ Ωm	>1012	>1012
	100℃ Ωm	1012 --1013	1012 --1013
	300℃ Ωm	>1012	>1010
Insulation breakdown intensity	KV/mm	18	18
Dielectric constant	100MHz(E)	10	9.5

Characteristics		Cordierite
Components		2MgO2Al2O35SiO2
Density	g/cm3	2.5
Water Absorption	%	0
Sintering temperature	℃	1350
Hardness	HV	800
Flexural strength	Kgf/cm2	900
Compressive Strength	Kgf/cm2	3500
Fracture toughness	Map.m3/2	-
Maximum service temperature	℃	1000
Coefficient of thermal expansion 0-1000℃	*10-6/℃	4
Heat resistance	T(℃)	250
Heat resistance	W/m.k(25℃-300℃)	1.3-
Volume resistivity	20℃ Ωm	>1012
	100℃ Ωm	107 --108
	300℃ Ωm	3*105
Insulation breakdown intensity	KV/mm	10
Dielectric constant	100MHz(E)	6

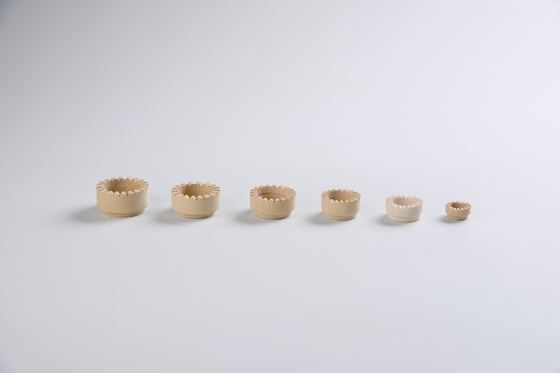

Industrial Ceramics Alumina Stud Welding Ceramic Ferrule Ceramic Protective Welding Ring 0

Industrial Ceramics Alumina Stud Welding Ceramic Ferrule Ceramic Protective Welding Ring 3

Industrial Ceramics Alumina Stud Welding Ceramic Ferrule Ceramic Protective Welding Ring 4

FAQ

Q1: Are you a manufacturer or a trader?
A1: We are a real manufacturer, our factory is specialized in producing refractory materials for more than 20 years. We promise to provide the best price, the best pre-sale and after-sale service.

Q2: How do you control your quality?
A2: For each production process, LJ has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.

Q3: What is your delivery time?
A3: Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.

Q4: Do you provide free samples?
A4: Of course, we provide free samples.

Q5: Can we visit your company?
A5: Yes, of course, you are welcome to visit LJ company and our products.

Q6: What is the MOQ for trial order?
A6: There is no limit, we can provide the best suggestion and solution according to your situation.

Q7: Why choose us?
A7: We have been making refractory materials for more than 20 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
