Wear Resistance Mechanical Alumina Ceramic Ring ISO9001 Stud Welding Ceramic Ferrule

Products

Wear Resistance Mechanical Alumina Ceramic Ring ISO9001 Stud Welding Ceramic Ferrule

MOQ:	2 piece
Price:	Negotiation
Standard Packaging:	Use the export carton which is secure against breakage on the MDF pallet.
Delivery Period:	To be negotiated
Payment Method:	L/C ，T/T

Detail Information

Product Description

Detail Information

Place of Origin

Jiangsu, China

Brand Name

LJ Ceramic

Certification

ISO9001:2008/ROHS

Model Number

Welding Ceramic Ferrule

Minimum Order Quantity:

2 piece

Price:

Negotiation

Packaging Details:

Use the export carton which is secure against breakage on the MDF pallet.

Delivery Time:

To be negotiated

Payment Terms:

L/C ，T/T

Highlight:

Wear Resistance Alumina Ceramic Ring

Mechanical Alumina Ceramic Ring

ISO9001 stud welding ceramic ferrule

Product Description

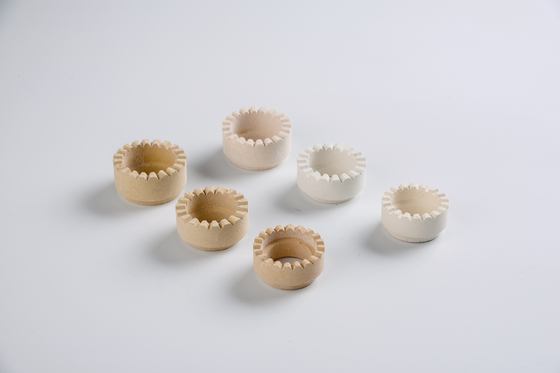

Industrial Wear Resistance Mechanical Alumina Ceramic Ring Stud Weld Ceramic Ferrule Ceramic

Welding ceramic ferrules are crucial components used primarily in stud welding processes, particularly in drawn arc stud welding. They are designed to facilitate and enhance the welding process by performing several key functions:

Shielding: Ceramic ferrules act as a barrier to protect the weld pool from atmospheric contamination, ensuring a cleaner weld.
Confinement: They confine the molten metal in the weld area, shaping the weld pool and preventing spatter from escaping.
Heat Retention: The ceramic material helps retain heat around the weld area, ensuring proper fusion of the stud and the base material.
Gas Coverage: They help distribute shielding gases evenly around the weld zone if used in gas-shielded welding processes.

Style

M series
RF series
UF series
PF series
Customized

Specification

Ceramic material performance index
		Alumina Ceramic			Zirconia Ceramic
Performance	Unit	≧95	≧99	≧99.5
Bulk density	g /cm3	3.7	3.85	3.85	6
Hardness	HRA ≥	86	88	88	92
Flexure strength	Mpa≧	300	350	400	1100
The max.temperature	℃	1500	1500	1500	1450
Linear expansion coefficient	×10-6/℃	7.5	8.2	8.2	10.2
Dielectric constant	εr20℃, 1MHz	9	9.2	9.2	28
Dielectric loss	tanδ×10-4, 1MHz	3	2	2	10
Volume resistivity	Ω·cm 20℃	10^13	10^14	10^14	10^14
Disruptive strength	KV/mm , DC≥	20	20	20	20
Acid resistance	mg/cm2 ≤	0.7	0.7	0.7	2
Alkali resistance	mg/cm2 ≤	0.2	0.1	0.1	0.08
Abrasive resistance	g/cm2 ≤	0.2	0.1	0.1	0.05
Compressive strength	MPa ≥	2500	2500	2500	3000
Rupture strength	MPa ≥	200	350	350	600
Elasticity modulus	GPa	300	350	350	210
Poisson ratio		0.2	0.22	0.22	0.23
Heat conductivity	W/m·K( 20℃)	20	25	25	2.6

Wear Resistance Mechanical Alumina Ceramic Ring ISO9001 Stud Welding Ceramic Ferrule 0

Wear Resistance Mechanical Alumina Ceramic Ring ISO9001 Stud Welding Ceramic Ferrule 4

FAQ

Q1: Are you a manufacturer or a trader?
A1: We are a real manufacturer, our factory is specialized in producing refractory materials for more than 20 years. We promise to provide the best price, the best pre-sale and after-sale service.

Q2: How do you control your quality?
A2: For each production process, LJ has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.

Q3: What is your delivery time?
A3: Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.

Q4: Do you provide free samples?
A4: Of course, we provide free samples.

Q5: Can we visit your company?
A5: Yes, of course, you are welcome to visit LJ company and our products.

Q6: What is the MOQ for trial order?
A6: There is no limit, we can provide the best suggestion and solution according to your situation.

Q7: Why choose us?
A7: We have been making refractory materials for more than 20 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
