99% Al2O3 Ceramic Rod Aluminium Rod 3mm - 8mm High Alumina Ceramic Rod Solid
  • name
  • name
  • name
  • name
  • name

99% Al2O3 Ceramic Rod Aluminium Rod 3mm - 8mm High Alumina Ceramic Rod Solid

MOQ: 2 piece
Price: Negotiation
Standard Packaging: Use the export carton which is secure against breakage on the MDF pallet.
Delivery Period: To be negotiated
Payment Method: L/C ，T/T
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
LJ Ceramic
Certification
ISO9001:2008/ROHS
Model Number
Alumina Ceramic Rod
Minimum Order Quantity:
2 piece
Price:
Negotiation
Packaging Details:
Use the export carton which is secure against breakage on the MDF pallet.
Delivery Time:
To be negotiated
Payment Terms:
L/C ，T/T
Highlight:

99% Al2O3 Ceramic Rod

,

Ceramic Rod 8mm

,

Rod aluminium rod 3mm

Product Description

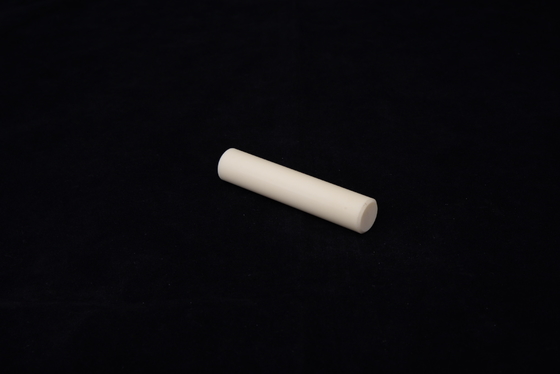

3mm - 8mm 99% Al2O3 High Alumina Ceramic Rod / Solid Tube


Introduction


Due to various excellent performance of the alumina ceramics under wide range of industrical conditions, 3mm 5mm 6mm 7mm 8mm White Pink 99 Al2O3 high alumina ceramic rod / solid tube is mainly used in the area of electric insulation, thermal processes, thermal protection ,high temperature measurement and so on.



Specification and Dimension

Diameter (mm) 0.4/0.5/0.6/0.7/0.8/0.9/1.0

2.0/3.0/4.0/5.0/6.0/7.0/8.0/9.0/10

12/14/16/18/20/25/30
Lengthe(mm) ≤1000 ≤2500
Alumina Content (%) 99 / 99.5 95 / 99 /99.5






Main Tecnical Index:



Product Name 3mm 5mm 6mm 7mm 8mm White Pink 99 Al2O3 high alumina ceramic rod / solid tube
Index Unit 85 % Al2O3 95 % Al2O3 99 % Al2O3 99.5 % Al2O3
Density g/cm3 3.3 3.65 3.8-3.88 3.95
Water Absorption % <0.1 <0.1 <0.1 0
Sintered Temperature ℃ 1620 1650 1800 1800
Hardness Mohs 7 9 9 9
Bending Strength(20℃)) Mpa 200 300 340 360
Compressive Strength Kgf/cm2 10000 25000 30000 30000
Long Working Temperature ℃ 1350 1400 1600 1650
Max. Working Temperature ℃ 1450 1600 1800 1800
Volume Resistivity 20℃ Ω. cm3 >1013 >1013 >1013 >1013
100℃ 1012-1013 1012-1013 1012-1013 1012-1013
300℃ >109 >1010 >1012 >1012



Advantages



1. Good smooth and high strength.

2. Extreme hardness, good protection from abrasion and corrosion.

3. High temperature resistance up to 1800℃

4. High dielectric properties.

5. Optimum air tightness



99% Al2O3 Ceramic Rod Aluminium Rod 3mm - 8mm High Alumina Ceramic Rod Solid 099% Al2O3 Ceramic Rod Aluminium Rod 3mm - 8mm High Alumina Ceramic Rod Solid 199% Al2O3 Ceramic Rod Aluminium Rod 3mm - 8mm High Alumina Ceramic Rod Solid 2
Purchase process



High Temperature Resistance Alumina Ceramic Tube 4

High Temperature Resistance Alumina Ceramic Tube 5

FAQ

Q1: Are you a manufacturer or a trader?
A1: We are a real manufacturer, our factory is specialized in producing refractory materials for more than 20 years. We promise to provide the best price, the best pre-sale and after-sale service.



Q2: How do you control your quality?
A2: For each production process, LJ has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.



Q3: What is your delivery time?
A3: Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.



Q4: Do you provide free samples?
A4: Of course, we provide free samples.



Q5: Can we visit your company?
A5: Yes, of course, you are welcome to visit LJ company and our products.



Q6: What is the MOQ for trial order?
A6: There is no limit, we can provide the best suggestion and solution according to your situation.



Q7: Why choose us?
A7: We have been making refractory materials for more than 20 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
