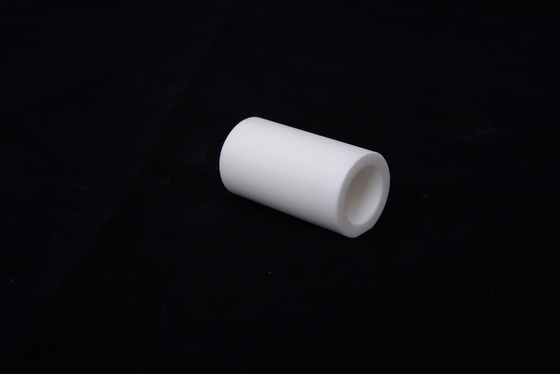

Straight Alumina Ceramic Tube Chemical Stability Industrial Ceramic Tubes For High Temperature

MOQ: 2 piece
Price: Negotiation
Standard Packaging: Use the export carton which is secure against breakage on the MDF pallet.
Delivery Period: To be negotiated
Payment Method: L/C ，T/T, Western Union
Supply Capacity: 300000 Piece/Pieces per Month
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
LJ Ceramic
Certification
ISO9001:2008/ROHS
Model Number
Alumina Ceramic Tube
Name:
Alumina Ceramic Tube
Type:
Ceramic Tubes
Application:
Industrial Ceramic
Size:
Size Customized
Feature:
High Temperature Resistance
Shape:
Customized
Minimum Order Quantity:
2 piece
Price:
Negotiation
Packaging Details:
Use the export carton which is secure against breakage on the MDF pallet.
Delivery Time:
To be negotiated
Payment Terms:
L/C ，T/T, Western Union
Supply Ability:
300000 Piece/Pieces per Month
Highlight:

Straight alumina ceramic tube

,

alumina ceramic tube chemical stability

,

Industrial ceramic tubes for high temperature

Product Description

Alumina Ceramic Straight Pipe Industrial Alumina Ceramic Tube





Product Features


1. It has the characteristics of high hardness, wear resistance and corrosion resistance. It can be widely used as grinding medium in ball mill, vibration mill, planet mill and stirring mill. 99 alumina ceramic tube wear rate is small, not stained with dirt material, long service life, high grinding efficiency.
2. 99 alumina ceramic tube is made of 99 alumina ceramic tube formed by hot die casting slurry and sintered at 1500℃. It has the characteristics of high temperature resistance, high mechanical strength, good insulation performance, high electrical strength, good chemical stability, and accurate abrasion resistance and scour resistance.
3. 99 Alumina ceramic tubes are widely used in radio, electronic components, textile ceramics, ball mill lining, nodular blasting nozzle and argon arc welding gun nozzle, etc.



Ceramic Tube Physical Properties
Material
 85Al2O3 90Al2O3 95Al2O3 99Al2O3
Al2O3
 85% 90% 93% 99.30%
Fe2O3 ≤1.0 ≤0.5 ≤0.5 ≤0.3
Desnsity:g/cm3 3.4 3.5 3.6 3.85
Vicker Hardness ≥8.6 ≥8.8 9 9
Water Absorption:% ≤0.2 ≤0.1 ≤0.085 ≤0.01
Refractoriness:℃ 1580 1600 1650 1800
Flexural Strength:Mpa 180 200 240 280
Wear Rate
(at room temperature, erosion, 100 grinding):%

≤3

≤0.5

≤0.5

≤0.5
