Customized Ceramic Tile High Temperature Resistant Hardness Alumina Ceramic Sheet
  • name
  • name
  • name
  • name
  • name
  • name
  • name

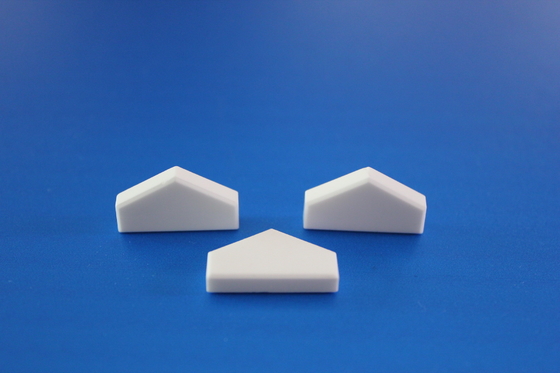

Customized Ceramic Tile High Temperature Resistant Hardness Alumina Ceramic Sheet

MOQ: 2 piece
Price: Negotiation
Standard Packaging: Use the export carton which is secure against breakage on the MDF pallet.
Delivery Period: To be negotiated
Payment Method: L/C ，T/T
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
LJ Ceramic
Certification
ISO9001:2008/ROHS
Model Number
Aluminium Ceramic Tile
Minimum Order Quantity:
2 piece
Price:
Negotiation
Packaging Details:
Use the export carton which is secure against breakage on the MDF pallet.
Delivery Time:
To be negotiated
Payment Terms:
L/C ，T/T
Highlight:

Customized Ceramic Tile

,

Ceramic Tile High Temperature Resistant

,

high hardness alumina ceramic sheet

Product Description

Customized High Temperature Resistant Alumina Ceramic Sheet

Aluminum ceramic tiles come in different types and grades based on the aluminum content and purity. Generally, the higher the aluminum content, the better the performance of the material, but the cost also increases accordingly.
Aluminum ceramic tiles can be custom-manufactured according to specific application requirements, with dimensions and shapes adjusted as needed. Different surface treatments can also be applied to meet special usage conditions.

Benefits

  • Long Service Life: Their high hardness and wear resistance give aluminum ceramic tiles a long service life in many applications.
  • High Efficiency: Their high thermal conductivity and electrical insulation properties improve the efficiency of many systems and devices.
  • Versatility: Suitable for a wide range of industrial and commercial applications, available in various sizes and shapes.
  • Environmentally Friendly: Ceramic materials are generally non-toxic and eco-friendly, causing no pollution to the environment.




Product Name
Ceramic Tile
Material
 Alumina 99(99% Alumina) Sintered Silicon Carbide(SSiC)
Boron Carbide(B4C)
Density
3.12-3.16 g/cm3
3.88 g/cm3
2.8 g/cm3
Purity
99% min
Types
Hexagon Tiles/Rectangle Tiles/Curved Rectangle Tiles/Single Curved Plates
Shapes
Square/Hexagonal/Cylinder/Rectangle/Single-curved Plate/Cut-angle Tile, etc

Sizes
50*50mm; 100*100mm; 50*25mm; 100*50mm (Specific Sizes Are Also Available)
Hex Tile Flat To Flat 20mm, 30mm, 40mm

Features
Excellent energy savings; Lighter weight and higher load capacity;
Excellent distortion resistance at high temperature;
High thermal conductivity; High Young's modulus;
Low thermal expansion coefficient; Extremely high hardness; Wear resistant



Product Index

Silicon Carbide Bonded Boron Carbide Ceramic Tiles
Item
 Index
Bulk Density (g/cm3)
2.82
Apparent Porosity (%)
 0.336
Bending Strength (Mpa) 290
HRA 90.9
Vickers Hardness(kgf/mm2 ) 2630
Alumina Tiles
Item
Unit
 99 Alumina Tiles
Al2O3 % 99
Bulk Density
g/cm3
3.88
Vickers Hardness
HV
 1550
Rockwell Hardness HRA 91
Rupture Strength Mpa 350
Elasticity Modulus
Gpa
323
Breaking Tenacity Mpa m1/2 3.99


Features:

1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all electric products and electric heating products
7) OEM, ODM and OBM are welcomed



Customized Ceramic Tile High Temperature Resistant Hardness Alumina Ceramic Sheet 0Customized Ceramic Tile High Temperature Resistant Hardness Alumina Ceramic Sheet 1Customized Ceramic Tile High Temperature Resistant Hardness Alumina Ceramic Sheet 2



Applications


Customized Ceramic Tile High Temperature Resistant Hardness Alumina Ceramic Sheet 3



Purchase process



High Temperature Resistance Alumina Ceramic Tube 4

High Temperature Resistance Alumina Ceramic Tube 5

FAQ

Q1: Are you a manufacturer or a trader?
A1: We are a real manufacturer, our factory is specialized in producing refractory materials for more than 20 years. We promise to provide the best price, the best pre-sale and after-sale service.



Q2: How do you control your quality?
A2: For each production process, LJ has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.



Q3: What is your delivery time?
A3: Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.



Q4: Do you provide free samples?
A4: Of course, we provide free samples.



Q5: Can we visit your company?
A5: Yes, of course, you are welcome to visit LJ company and our products.



Q6: What is the MOQ for trial order?
A6: There is no limit, we can provide the best suggestion and solution according to your situation.



Q7: Why choose us?
A7: We have been making refractory materials for more than 20 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.

Tags:
