Textile Machinery 99 Alumina Ceramic Machining Elastic Parts Accessories 99%

MOQ: 2 piece
Price: Negotiation
Standard Packaging: Use the export carton which is secure against breakage on the MDF pallet.
Delivery Period: To be negotiated
Payment Method: L/C ，T/T
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
LJ Ceramic
Certification
ISO9001:2008/ROHS
Minimum Order Quantity:
2 piece
Price:
Negotiation
Packaging Details:
Use the export carton which is secure against breakage on the MDF pallet.
Delivery Time:
To be negotiated
Payment Terms:
L/C ，T/T
Highlight:

Textile Machinery 99 alumina

,

99 alumina Elastic Parts

,

alumina ceramic machining 99%

Product Description

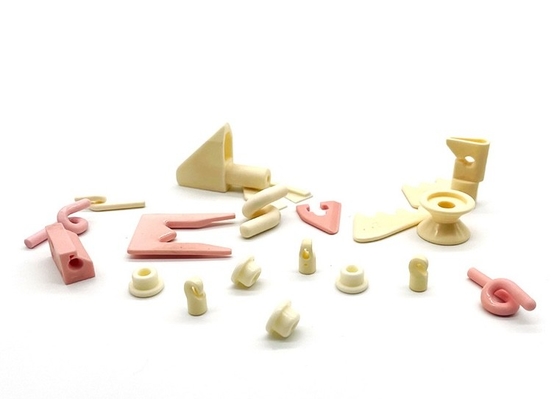

Textile Machinery Elastic Parts Accessories 99 Alumina Ceramic Textile Guide Wire Parts



99% alumina ceramic components are commonly used in the textile machinery industry, particularly in parts related to false-twist texturing, also known as draw-texturing. These ceramic components offer high wear resistance, thermal stability, and low friction, which are crucial for the high-speed operations involved in textile production.

Key Features

  1. Wear Resistance: The high hardness of 99% alumina ceramic ensures longevity in components that experience constant friction and wear.
  2. Thermal Stability: These ceramics maintain their properties under high temperatures, making them suitable for use in heat-intensive processes like false-twist texturing.
  3. Low Friction: The smooth surface of alumina ceramic parts reduces friction, minimizing thread damage and improving the quality of the finished textile product.
  4. Corrosion Resistance: Alumina ceramics are highly resistant to chemical attack, ensuring that they can withstand the harsh environments often found in textile processing.

Applications in Textile Machinery

  • Texturing Discs and Rollers: Used in false-twist texturing machines, these components guide and twist the yarn under tension, requiring both precision and durability.
  • Thread Guides and Eyelets: These components direct the yarn through the machinery, ensuring smooth operation and preventing damage to the yarn.
  • Cutting Blades: Ceramic blades are used in textile machinery for their sharpness and durability, ensuring clean cuts and long-lasting performance.



Ceramic Properties Table
  Name 99ceramic 95ceramic Zirconia
  Main Ingredients Al2O3>99% Al2O3>95% ZrO2≥94%
Physical properties Density 3.85 3.6 5.9
Water Absorption％ 0 0 0
Sintering temperature°C 1690 1670 1650
Material properties Hardness HV 1700 1600 1400
Flexural strength 4pt >3500 ＞2900 >11000
Compressive strength Kgf/㎡ 30000 25000 25000
Thermal properties Maximum operating temperature°C 1500 1400 1600
Coefficient of thermal expansion 8 7.8 10
10-6/°C
0-1000°C
Electrical Characteristics Thermal shock resistance T(°C) 200 220 350
Thermal conductivity W/m.k 31 22 3
Volume resistivity Ω.cm >10¹² >10¹² >10¹²
Dielectric breakdown strength KT/m 18 16 15
Dielectric constant 1MHZ(E) 9.2-10.5 9.0-10 12.5



Textile Machinery 99 Alumina Ceramic Machining Elastic Parts Accessories 99% 0Textile Machinery 99 Alumina Ceramic Machining Elastic Parts Accessories 99% 1Textile Machinery 99 Alumina Ceramic Machining Elastic Parts Accessories 99% 2Textile Machinery 99 Alumina Ceramic Machining Elastic Parts Accessories 99% 3



Purchase process



High Temperature Resistance Alumina Ceramic Tube 4

High Temperature Resistance Alumina Ceramic Tube 5

FAQ

Q1: Are you a manufacturer or a trader?
A1: We are a real manufacturer, our factory is specialized in producing refractory materials for more than 20 years. We promise to provide the best price, the best pre-sale and after-sale service.



Q2: How do you control your quality?
A2: For each production process, LJ has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.



Q3: What is your delivery time?
A3: Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.



Q4: Do you provide free samples?
A4: Of course, we provide free samples.



Q5: Can we visit your company?
A5: Yes, of course, you are welcome to visit LJ company and our products.



Q6: What is the MOQ for trial order?
A6: There is no limit, we can provide the best suggestion and solution according to your situation.



Q7: Why choose us?
A7: We have been making refractory materials for more than 20 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
