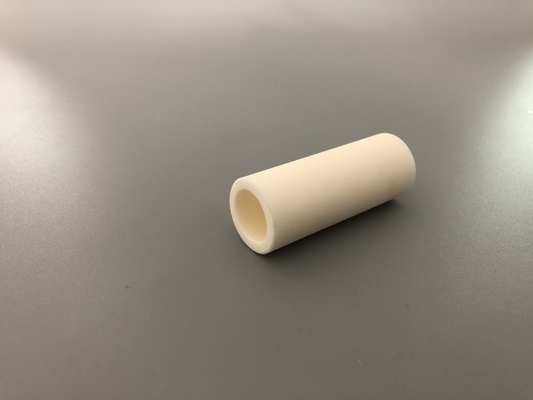

Ceramic Plunger Alumina 99 Alumina Ceramic Rod Wear Resistant Ceramic Plunger ISO9001
  • name
  • name
  • name
  • name
  • name

Ceramic Plunger Alumina 99 Alumina Ceramic Rod Wear Resistant Ceramic Plunger ISO9001

MOQ: 2 piece
Price: Negotiation
Standard Packaging: Use the export carton which is secure against breakage on the MDF pallet.
Delivery Period: To be negotiated
Payment Method: L/C ，T/T
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
LJ Ceramic
Certification
ISO9001:2008/ROHS
Minimum Order Quantity:
2 piece
Price:
Negotiation
Packaging Details:
Use the export carton which is secure against breakage on the MDF pallet.
Delivery Time:
To be negotiated
Payment Terms:
L/C ，T/T
Highlight:

Ceramic Plunger alumina 99

,

alumina 99 Wear Resistant

,

Alumina Ceramic Rod ISO9001

Product Description



Ceramic Plunger 99% Alumina Ceramic Rod Insulation Wear-Resistant Ceramic Plunger



An insulation wear-resistant ceramic plunger is typically used in industrial applications where high durability, thermal insulation, and resistance to wear and corrosion are crucial. These plungers are often employed in equipment that handles abrasive or corrosive fluids, such as in pumps for chemical processing, oil and gas, or high-pressure applications.

Key Features:

  1. Wear Resistance: The ceramic material is highly resistant to wear and abrasion, making it suitable for applications involving harsh environments.
  2. Thermal Insulation: Ceramic has excellent insulating properties, helping to maintain temperature control in processes where heat resistance is important.
  3. Corrosion Resistance: Ceramics are naturally resistant to corrosion, making these plungers ideal for use with chemicals and corrosive substances.
  4. High Hardness: The high hardness of ceramics ensures the longevity of the plunger, reducing the frequency of replacements.
  5. Smooth Surface: The smooth surface of the ceramic plunger reduces friction, improving efficiency and minimizing wear on other components.

Applications:

  • Chemical Pumps: For handling corrosive and abrasive fluids.
  • High-Pressure Pumps: Used in applications requiring the handling of fluids at high pressures.
  • Oil and Gas Industry: Where resistance to harsh environmental conditions is critical.
  • Food Processing: For applications requiring hygienic and corrosion-resistant materials.
  • Pharmaceutical Industry: Where chemical resistance and purity are important.



Ceramic Properties Table
  Name 99ceramic 95ceramic Zirconia
  Main Ingredients Al2O3>99% Al2O3>95% ZrO2≥94%
Physical properties Density 3.85 3.6 5.9
Water Absorption％ 0 0 0
Sintering temperature°C 1690 1670 1650
Material properties Hardness HV 1700 1600 1400
Flexural strength 4pt >3500 ＞2900 >11000
Compressive strength Kgf/㎡ 30000 25000 25000
Thermal properties Maximum operating temperature°C 1500 1400 1600
Coefficient of thermal expansion 8 7.8 10
10-6/°C
0-1000°C
Electrical Characteristics Thermal shock resistance T(°C) 200 220 350
Thermal conductivity W/m.k 31 22 3
Volume resistivity Ω.cm >10¹² >10¹² >10¹²
Dielectric breakdown strength KT/m 18 16 15
Dielectric constant 1MHZ(E) 9.2-10.5 9.0-10 12.5


Ceramic Plunger Alumina 99 Alumina Ceramic Rod Wear Resistant Ceramic Plunger ISO9001 0Ceramic Plunger Alumina 99 Alumina Ceramic Rod Wear Resistant Ceramic Plunger ISO9001 1Ceramic Plunger Alumina 99 Alumina Ceramic Rod Wear Resistant Ceramic Plunger ISO9001 2Ceramic Plunger Alumina 99 Alumina Ceramic Rod Wear Resistant Ceramic Plunger ISO9001 3
Purchase process



High Temperature Resistance Alumina Ceramic Tube 4

High Temperature Resistance Alumina Ceramic Tube 5

FAQ

Q1: Are you a manufacturer or a trader?
A1: We are a real manufacturer, our factory is specialized in producing refractory materials for more than 20 years. We promise to provide the best price, the best pre-sale and after-sale service.



Q2: How do you control your quality?
A2: For each production process, LJ has a complete QC system for chemical composition and physical properties. And we will test the goods, and the quality certificate will be shipped with the goods. If you have special requirements, we will try our best to accommodate them.



Q3: What is your delivery time?
A3: Depending on the quantity, our delivery time is different. But we promise to ship as soon as possible with guaranteed quality.



Q4: Do you provide free samples?
A4: Of course, we provide free samples.



Q5: Can we visit your company?
A5: Yes, of course, you are welcome to visit LJ company and our products.



Q6: What is the MOQ for trial order?
A6: There is no limit, we can provide the best suggestion and solution according to your situation.



Q7: Why choose us?
A7: We have been making refractory materials for more than 20 years, we have strong technical support and rich experience, we can help customers design different kilns and provide one-stop service.
