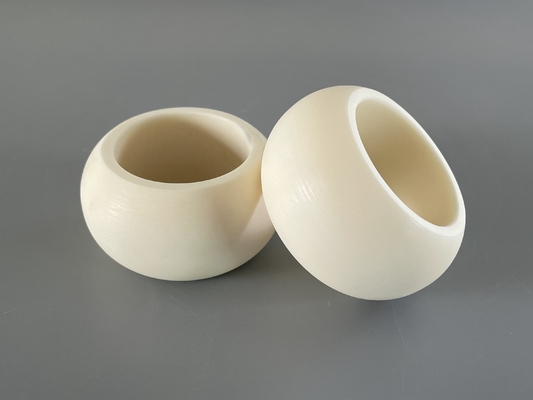

Refractory Alumina Ceramic Balls Heat Resistant Mullite Ceramic Electrical Ceramic

MOQ: 2 piece
Price: Negotiation
Standard Packaging: Use the export carton which is secure against breakage on the MDF pallet.
Delivery Period: To be negotiated
Payment Method: L/C ，T/T
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
LJ Ceramic
Certification
ISO9001:2008/ROHS
Model Number
Alumina Ceramic Ball
Minimum Order Quantity:
2 piece
Price:
Negotiation
Packaging Details:
Use the export carton which is secure against breakage on the MDF pallet.
Delivery Time:
To be negotiated
Payment Terms:
L/C ，T/T
Highlight:

Refractory alumina ceramic balls

,

alumina ceramic balls Heat Resistant

,

Mullite Ceramic Electrical

Product Description

Refractory Heat Resistant Mullite Ceramic Heating Square Plates Electrical Ceramic


Technical Parameter:



Model  Alumina Ceramic Ball
Color  Pure White/lvory
Shape Ball
Typical Technical Composition Min. % Max. % Usual%
SiO2 ****** 0.2 0.18
Al2O3 99 99.6 99.3
Fe2O3 ****** 0.2 0.02
TiO2 ****** 0.55 0.02
CaO ****** 0.1 0.02
MgO ****** 0.1 0.05
Na2O ****** 0.25 0.01
K2O ****** 0.2 0.13
Physical properties
Index Value Value
Leachable Iron ≤ 0.01% ******
Apparent Porosity by Weight ≤ 7.0% ******
Moh's Hardness Scale >8.0 ******
Water Absorption <4.0 wt.% ******
Acid Resistance >99.8% ******
Thermal Conductivity 0.7-0.8 w/m2.k ******
Thermal Expansion @ 500 0.10% ******
Thermal Shock Stability, 1000 then water cooling 10 times ******
Max. Operating Temperature 1550°C 2822
Specific Density 3400 kg/m3 212 lb/ft3
Bulk Density (Packing Density) 2000 kg/m3 131 lb/ft3
Crush Strength
Size Crush Strength
Nominal Size (lbs) (kg) (N/pc)
mm inch min. min. min.
3 1/8" 115 52 510
6 1/4" 230 105 1030
10 3/8" 440 200 1961
13 1/2" 1355 615 6031
16 5/8" 1720 780 7650
19 3/4" 2315 1050 10297
25 1" 3130 1420 13925
38 1-1/2" 4034 1830 17946
50 2" 4960 2250 22065
Typical Application a)high temperature and steam
b)has very excellent thermal properties, with its high density high-temperature resistance 1550.
c)it's suitable for applications in olefin processes, such as ethylene dryers




Features:

1) A variety of specifications available.
2) Satisfy various technical request
3) Lower medium spoilage
4) Good insulation performance and high temperature resistance
5) Stiffness texture
6) Used in all electric products and electric heating products
7) OEM, ODM and OBM are welcomed



Refractory Alumina Ceramic Balls Heat Resistant Mullite Ceramic Electrical Ceramic 0Refractory Alumina Ceramic Balls Heat Resistant Mullite Ceramic Electrical Ceramic 1Refractory Alumina Ceramic Balls Heat Resistant Mullite Ceramic Electrical Ceramic 2
