Polished Alumina Ceramic Tube Wear Resistant Size Customized Alumina Ceramic Part

MOQ: 2 piece
Price: Negotiation
Standard Packaging: Use the export carton which is secure against breakage on the MDF pallet.
Delivery Period: To be negotiated
Payment Method: L/C ，T/T, Western Union
Supply Capacity: 300000 Piece/Pieces per Month
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
LJ Ceramic
Certification
ISO9001:2008/ROHS
Model Number
Alumina Ceramic Tube
Name:
Alumina Ceramic Tube
Type:
Ceramic Tubes
Application:
Industrial Ceramic
Size:
Size Customized
Feature:
High Temperature Resistance
Shape:
Customized
Minimum Order Quantity:
2 piece
Price:
Negotiation
Packaging Details:
Use the export carton which is secure against breakage on the MDF pallet.
Delivery Time:
To be negotiated
Payment Terms:
L/C ，T/T, Western Union
Supply Ability:
300000 Piece/Pieces per Month
Highlight:

Polished alumina ceramic tube

,

alumina ceramic tube Wear Resistant

,

Size Customized alumina ceramic part

Product Description

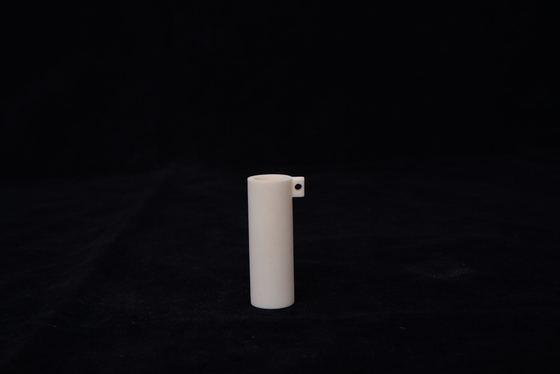

Good Wear Resistant Polished Processing Ceramics Alumina Ceramic Tube



Our company's ceramic tubes are made of alumina materials. The ceramic tube shells are divided into round tubes and square tubes. The ceramic tubes are fired at high temperatures and have strong insulation properties. After grinding and polishing, the surface of the ceramic tubes is smooth, acid-resistant, alkali-resistant, with strong sealing and good wear resistance.
1) Material selection: Al2O3 material
2) Forming method: isostatic pressing/dry pressing/extrusion
3) Color: white
4) Sintering temperature: 1750℃
5) Material properties: HRA≥85ρ≥3.6
6) Surface finish: Ra0.6-Ra0.8
7) Packaging: carton packaging, wooden box shipping
8) Customization is available according to drawings/samples. Quote based on product information.


Ceramic Tube Physical Properties
Material
 85Al2O3 90Al2O3 95Al2O3 99Al2O3
Al2O3
 85% 90% 93% 99.30%
Fe2O3 ≤1.0 ≤0.5 ≤0.5 ≤0.3
Desnsity:g/cm3 3.4 3.5 3.6 3.85
Vicker Hardness ≥8.6 ≥8.8 9 9
Water Absorption:% ≤0.2 ≤0.1 ≤0.085 ≤0.01
Refractoriness:℃ 1580 1600 1650 1800
Flexural Strength:Mpa 180 200 240 280
Wear Rate
(at room temperature, erosion, 100 grinding):%

≤3

≤0.5

≤0.5

≤0.5



Polished Alumina Ceramic Tube Wear Resistant Size Customized Alumina Ceramic Part 0Polished Alumina Ceramic Tube Wear Resistant Size Customized Alumina Ceramic Part 1Polished Alumina Ceramic Tube Wear Resistant Size Customized Alumina Ceramic Part 2

Polished Alumina Ceramic Tube Wear Resistant Size Customized Alumina Ceramic Part 3



Purchase process



Polished Alumina Ceramic Tube Wear Resistant Size Customized Alumina Ceramic Part 4

Polished Alumina Ceramic Tube Wear Resistant Size Customized Alumina Ceramic Part 5

Tags:

Polished alumina ceramic tube,

alumina ceramic tube Wear Resistant,

Size Customized alumina ceramic part
