High Temperature Resistance Alumina Ceramic Tube 0.001mm Precision Alumina Ceramic Components

MOQ: 2 piece
Price: Negotiation
Standard Packaging: Use the export carton which is secure against breakage on the MDF pallet.
Delivery Period: To be negotiated
Payment Method: L/C ，T/T
Supply Capacity: 300000 Piece/Pieces per Month
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
LJ Ceramic
Certification
ISO9001:2008/ROHS
Model Number
Alumina Ceramic Tube
Name:
Alumina Ceramic Tube
Precision:
+- 0.001mm
Application:
Industrial
Raw Material:
95%-99.7% Alumina Ceramic
Chemical Stability:
Excellent
Color:
White
Minimum Order Quantity:
2 piece
Price:
Negotiation
Packaging Details:
Use the export carton which is secure against breakage on the MDF pallet.
Delivery Time:
To be negotiated
Payment Terms:
L/C ，T/T
Supply Ability:
300000 Piece/Pieces per Month
Highlight:

High Temperature Resistance alumina ceramic tube

,

alumina ceramic tube 0.001mm precision

,

precision alumina ceramic components

Product Description

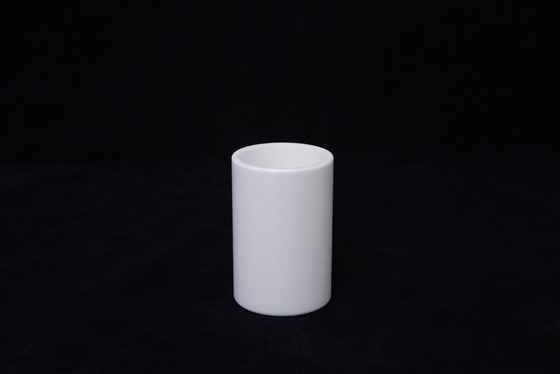

High Temperature Resistance Alumina Ceramic Tube



Alumina (Aluminum Oxide) is the most common material in ceramic products, which has the characteristic of high temperature resistance, wear resistance, corrosion resistance, high insulation, high hardness, compression resistance ,etc. In the early days, it was used in electronic components and textile machinery. Because it has superior properties that distinguish it from other materials like metal and rubber, it is now widely applied to many important fields such as precision ceramic shafts and bushings in high-wear environment, auto oxygen sensors, new energy auto fuses, medical cutters and medical equipment.



Product Features


1. It has the characteristics of high hardness, wear resistance and corrosion resistance. It can be widely used as grinding medium in ball mill, vibration mill, planet mill and stirring mill. 99 alumina ceramic tube wear rate is small, not stained with dirt material, long service life, high grinding efficiency.
2. 99 alumina ceramic tube is made of 99 alumina ceramic tube formed by hot die casting slurry and sintered at 1500℃. It has the characteristics of high temperature resistance, high mechanical strength, good insulation performance, high electrical strength, good chemical stability, and accurate abrasion resistance and scour resistance.
3. 99 Alumina ceramic tubes are widely used in radio, electronic components, textile ceramics, ball mill lining, nodular blasting nozzle and argon arc welding gun nozzle, etc.



Ceramic Tube
Material
 85Al2O3 90Al2O3 95Al2O3 99Al2O3
Al2O3
 85% 90% 93% 99.30%
Fe2O3 ≤1.0 ≤0.5 ≤0.5 ≤0.3
Desnsity:g/cm3 3.4 3.5 3.6 3.85
Vicker Hardness ≥8.6 ≥8.8 9 9
Water Absorption:% ≤0.2 ≤0.1 ≤0.085 ≤0.01
Refractoriness:℃ 1580 1600 1650 1800
Flexural Strength:Mpa 180 200 240 280
Wear Rate
(at room temperature, erosion, 100 grinding):%

≤3

≤0.5

≤0.5

≤0.5



High Temperature Resistance Alumina Ceramic Tube 0.001mm Precision Alumina Ceramic Components 0High Temperature Resistance Alumina Ceramic Tube 0.001mm Precision Alumina Ceramic Components 1High Temperature Resistance Alumina Ceramic Tube 0.001mm Precision Alumina Ceramic Components 2

High Temperature Resistance Alumina Ceramic Tube 0.001mm Precision Alumina Ceramic Components 3



Purchase process



High Temperature Resistance Alumina Ceramic Tube 0.001mm Precision Alumina Ceramic Components 4

High Temperature Resistance Alumina Ceramic Tube 0.001mm Precision Alumina Ceramic Components 5
