High Purity White Alumina Ceramic Tube 99.7% Al2O3 Tube

MOQ: 2 piece
Price: Negotiation
Standard Packaging: Use the export carton which is secure against breakage on the MDF pallet.
Delivery Period: To be negotiated
Payment Method: L/C ，T/T, Western Union
Supply Capacity: 300000 Piece/Pieces per Month
Detail Information
Product Description
Detail Information
Place of Origin
Jiangsu, China
Brand Name
LJ Ceramic
Certification
ISO9001:2008/ROHS
Model Number
Alumina Ceramic Tube
Name:
Alumina Ceramic Tube
Type:
Ceramic Tubes
Application:
Industrial Ceramic
Processing Service:
Bending, Welding, Cutting, Punching, Decoiling, Moulding
Size:
Size Customized
Feature:
High Temperature Resistance
End:
Open Both Ends Or Closed One End
Shape:
Customized
Color:
White,yellow,gray Or Ivory
Minimum Order Quantity:
2 piece
Price:
Negotiation
Packaging Details:
Use the export carton which is secure against breakage on the MDF pallet.
Delivery Time:
To be negotiated
Payment Terms:
L/C ，T/T, Western Union
Supply Ability:
300000 Piece/Pieces per Month
Highlight:

High Purity alumina ceramic tube

,

White alumina ceramic tube

,

99.7% al2o3 tube

Product Description

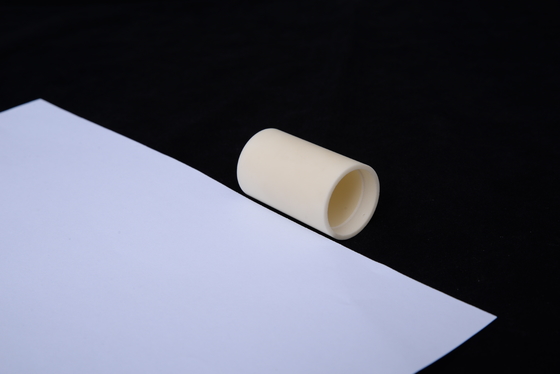

High Purity 99.7% Al2O3 Alumina Ceramic Tube



Alumina ceramic is kind of structural ceramics, with insulation resistance, voltage resistance, high strength, good thermal
conductivity, dielectric loss, stable electrical performance characteristics. Used in electronic ceramic substrates, ceramic
electrical insulation, vacuum devices, devices porcelain, spark plugs and other products. We can make the part by hot injection pressing, dry pressing, 200T isostatic pressing and extrusion productive technology etc.



Product Features


1. It has the characteristics of high hardness, wear resistance and corrosion resistance. It can be widely used as grinding medium in ball mill, vibration mill, planet mill and stirring mill. 99 alumina ceramic tube wear rate is small, not stained with dirt material, long service life, high grinding efficiency.
2. 99 alumina ceramic tube is made of 99 alumina ceramic tube formed by hot die casting slurry and sintered at 1500℃. It has the characteristics of high temperature resistance, high mechanical strength, good insulation performance, high electrical strength, good chemical stability, and accurate abrasion resistance and scour resistance.
3. 99 Alumina ceramic tubes are widely used in radio, electronic components, textile ceramics, ball mill lining, nodular blasting nozzle and argon arc welding gun nozzle, etc.



99 Ceramic Tube Physical Properties
Material
85Al2O3
90Al2O3
95Al2O3
99Al2O3
Al2O3
85%
90%
93%
99.30%
Fe2O3
≤1.0
≤0.5
≤0.5
≤0.3
Desnsity:g/cm3
3.4
3.5
3.6
3.85
Vicker Hardness
≥8.6
≥8.8
9
9
Water Absorption:%
≤0.2
≤0.1
≤0.085
≤0.01
Refractoriness:℃
1580
1600
1650
1800
Flexural Strength:Mpa
180
200
240
280
Wear Rate
(at room temperature, erosion, 100 grinding):%

≤3

≤0.5

≤0.5

≤0.5





High Purity White Alumina Ceramic Tube 99.7% Al2O3 Tube 0High Purity White Alumina Ceramic Tube 99.7% Al2O3 Tube 1High Purity White Alumina Ceramic Tube 99.7% Al2O3 Tube 2

High Purity White Alumina Ceramic Tube 99.7% Al2O3 Tube 3



Purchase process



High Purity White Alumina Ceramic Tube 99.7% Al2O3 Tube 4

High Purity White Alumina Ceramic Tube 99.7% Al2O3 Tube 5

Tags:

High Purity alumina ceramic tube,

White alumina ceramic tube,

99.7% al2o3 tube
